Fast Flasks Scanner

Whether it is a complete system for a complex biological experiment, automation devices for increasing throughput, or inspection systems to catch defects and increase production, we have the products, people, and partners to provide well-engineered solutions for you.

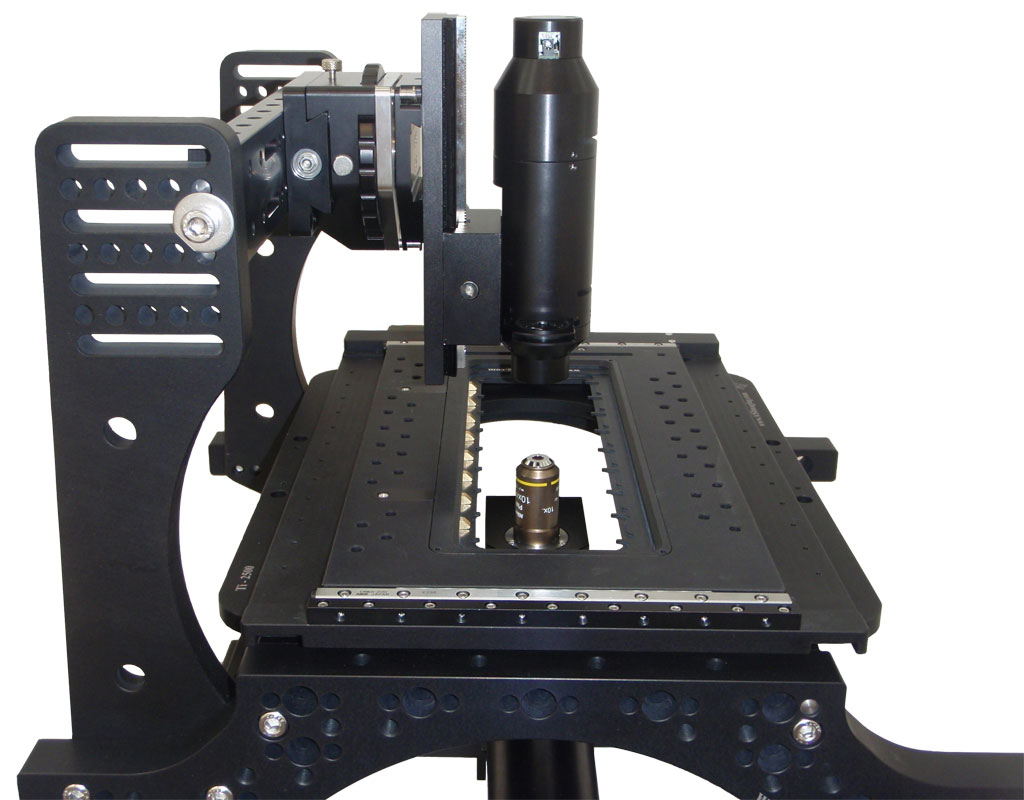

As an example, our Fast Flasks Scanner is a system with a microscope, a computer and a software which provides a fast scanning of different flasks. The RAMM (Rapid Automated Modular Microscope) and one of ASI's XY Stages allow to the user a wide choice of flasks to scan, from Petri dishes to Falcon's F175.

A plugin created under Micro-manager's software can scan one or several flasks and another plugin create a high quality picture of the entire flask.



Example of flasks :

  • F75
  • F175
  • 96-well microtiter plate
  • SBS
  • 6 well plate
  • Petri dish
  • Microscope slides



Exemples of scanning speed :

Flask
Scanning time
Resolution
F75 4 min 2.6504 µm
8 min 1.638 µm
20 min 0.6555 µm
45 min 0.3262 µm

Specifications for standard configuration

XY stage range of travel Full XY stage range of travel (zero obstruction)
Linear translation range of travel At least 50 mm
Resolution (rotary encoder step) 0.022µm
RMS repeatability < 0.7µm
Maximum velocity 7 mm/sec

*shown with 6.35 mm pitch Lead Screw



Lead screw options

Lead Screw Pitch Options
Rotary Encoder Resolution
Maximum Speed
25.40 mm (Ultra-coarse)
88 nm
28 mm/sec
12.70 mm (Super-coarse)
44 nm
14 mm/sec
6.35 mm (Standard)
22 nm
7 mm/sec
1.57 mm (Fine)
5.5 nm
1.75 mm/sec

Optional Linear Encoders: = Resolution 10 nm, Accuracy = ±3 µm per length of scale



System customization

ASI's RAMM system can be used with our MS-2000 Stages, FW-1000 Filterwheels, and other items.

Custom optical systems can be configured using ASI's Modular Infinity Microscope.



If you would like more information, please contact us.
