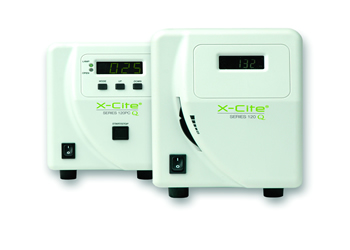

LDGI X-cite 120Q



The X-Cite 120Q microscope light source system uses a 120-watt lamp to deliver rich spectral fluorescence excitation with a uniformly illuminated field of view. The proprietary Intelli-Lamp provides more than 2000 hours of life. The lamp is pre-aligned so changing it is a simple, one-step process. The optional adjustable iris allows the user to set the level of illumination. Ideally suited for fluorescence illumination in routine assays and as a microscope light source for use in multi-user facilities.





Features

Benefits

Pre-aligned lamp Easy lamp replacement; no alignment required
2000 hour lamp life, guaranteed Fewer lamp replacements saves time and money
Powerful 120W lamp Rich spectrum with high excitation intensity
Intelli-Lamp technology Maintains optimum lamp temperature, automatically accumulates lamp hours
Optional adjustable iris Minimize photobleaching by adjusting light intensity



Specifications

Includes Lamp module, liquid light guide with adaptor, grounded and shielded power cord, and manual
Lamp Proprietary 120W Mercury Vapor Short Arc
Lamp Life 2000 hours guaranteed; 2500 hours typical
Power Supply High efficiency, switch mode, line isolated, 90-264 VAC, 47-63 Hz, universal input
Warm-Up Period 90 seconds (typical)
Panel Controls Power On/Off, intensity adjustment (if applicable)
Panel Displays Accumulated lamp usage, lamp status indicators
Dimensions (LxWxH) 13.5" x 5.5" x 6.5" (34.2cm x 13.9cm x 16.5cm)
Weight 6.7 lbs. (3.04 kg)
Worldwide Certifications CE Marked, Certified to IEC, Canadian and US Standards
Warranty 1 year (excluding lamp and light guide)
Adaptors Compatible with microscopes from all major manufacturers





Additional information

LDGI X-cite 120Q PDF



As an authorized European distributor, OPTOPHASE has most LDGI products on stock (including light guide) for immediate delivery. If you would like more information, please contact us.
