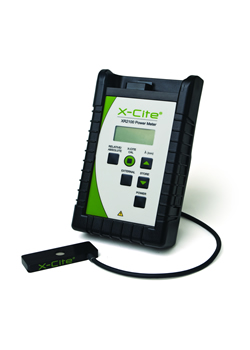

The X-Cite Optical Power Measurement System includes both the X-Cite XR2100 Power Meter and the X-Cite XP750 Objective Plane Power Sensor. Designed for measuring optical power in watts at the specimen level, the X-Cite XP750 has a low, sleek profile that fits on the microscope stage and offers the versatility of measuring power output from an X-Cite illuminator or any other epi-fluorescence light source.
The X-Cite XR2100 and X-Cite XP750 allow you to measure the optical power at the specimen level enabling consistent and repeatable illumination throughout research experiments, and also assist in equipment set-up and troubleshooting. With a PC interface and "Power Snapshot" tool, data can be easily stored electronically for complete experiment records.
Features |
Benefits |
X-Cite® XP750 & XR2100 |
| Microscope slide dimensions with a low profile |
Fits in a standard microscope clip for convenient measuring of light directly from the objective, without removing or reconfiguring equipment |
| Compatible with lamps, laser and LED light sources |
Economically use one system to service multiple microscopes, regardless of illumination technology |
| Large detection surface area - 10mm |
Appropriate for use with both low and high magnification objectives |
| No focusing required |
Obtain accurate measurements quickly |
| Wide range of wavelengths and power |
Suitable for use with full range of applications and microscope configurations |
| Calibration traceable to NIST / NRC standards |
Achieve quality assurance and confidence in accuracy of results |
| X-Cite XR2100 |
| LCD display with backlight |
View data clearly, even in the dim lighting conditions of a microscopy imaging suite |
| Two input ports for measuring power via objective plane sensor or light guide |
Selectively monitor light source performance of entire microscope system or individual components |
| Calibration traceable to NIST |
Achieve quality assurance and confidence in accuracy of results |
| One-button / click for data collection, storage and exporting |
Keep data organized with accurate, paperless record keeping |
| PC interface |
Manage settings and data conveniently via PC; automatable for convenience and OEM use |
| Compatibility with X-Cite exacte calibration feature |
Easily calibrate X-Citeexacte via light guide or objective plane sensor to display and set power in watts |
Specifications - XR2100 |
| Includes |
Handheld power meter, adapter for 3mm light guide, software CD, cables, user manual |
| Power Range |
50mW-10W |
| Measurement Resolution |
0.1mW-0.01W |
| Uncertainty |
±5% |
| Response Time |
1s |
| Calibration |
Traceable to NIST |
| Wavelength Range |
340nm-675nm |
| Lamp Type / Light Source Compatibility |
X-Citeexacte , X-Cite 120 Series (using 3mm light guide input port) |
| Objective Compatibility |
Not applicable |
| Display |
3 digit LCD, backlight |
| Wavelength Selection |
Not Applicable |
| Data Capacity |
Store 100+ readings on handheld unit, or record directly into PC interface; export in spreadsheet compatible format |
| PC Controls |
View / change settings, download / export stored data |
| Command Protocol |
RS232 via USB virtual COM port |
| Power Supply |
2 x 3.6V Lithium Battery |
| Weight |
1lb (450g) |
| Dimensions (without cover) |
7.5" x 4.5" x 2" (19cm x 11.5cm x 5cm) |
| Worldwide Certifications |
CE marked |
| Warranty |
1 year |
| Patents |
X-Cite® Optical Power Measurement System incorporates technology protected by the following patents: US#6,437,861; US#7,335,901 |
Specifications - XP750 |
| Includes |
Objective plane power sensor with cable / connector for X-Cite® XR2100 |
| Power Range |
5µW-500mW |
| Measurement Resolution |
0.01µW-1mW |
| Uncertainty |
±6% |
| Response Time |
600ms (initial), 3s (to ensure stable reading) |
| Calibration |
Traceable to NRC |
| Wavelength Range |
320nm-750nm |
| Lamp Type / Light Source Compatibility |
X-Citeexacte , X-Cite 120 Series, Mercury / HBO, Metal Halide, Xenon, LED, Laser |
| Objective Compatibility |
4X-63X; air coupled, with FOV diameters less than 10mm |
| Display |
Via X-Cite XR2100 |
| Wavelength Selection |
1nm increments using up / down buttons on X-Cite XR2100 or PC interface |
| Data Capacity |
Via X-Cite XR2100 |
| PC Controls |
View / change settings, define favorite wavelengths, record data for multiple objectives / filters / intensity settings, download / export stored data |
| Command Protocol |
Via X-Cite XR2100 |
| Power Supply |
Via X-Cite XR2100 |
| Weight |
2.9oz (82g) |
| Dimensions (without cover) |
3" x 1" x 0.35" (75mm x 25mm x 9mm) |
| Worldwide Certifications |
Via X-Cite XR2100 |
| Warranty |
1 year |
| Patents |
X-Cite Optical Power Measurement System incorporates technology protected by the following patents: US#6,437,861; US#7,335,901 |
Note: Must be used in combination with the XR2100.
|
|
